MicroLogix

Micro800 (Micro810, 820, 850, 870)​

Micro Series (Smallest)
​🟢 Entry-level, lowest cost, very compact.

• Families: Micro800 (Micro810, 820, 850, 870),
  ​older MicroLogix (1000, 1100, 1200, 1400, 1500)
• Typical Uses:
  • Small machines
  • Standalone equipment
  • Simple automation tasks
• Key Features:
  • Often all-in-one (CPU + I/O in one box)
  • Limited expansion
  • Low I/O count (usually 10–48 points)

📏 Physical Size: Smallest footprint, like a home Wi-Fi router or even smaller.

MicroLogix

---

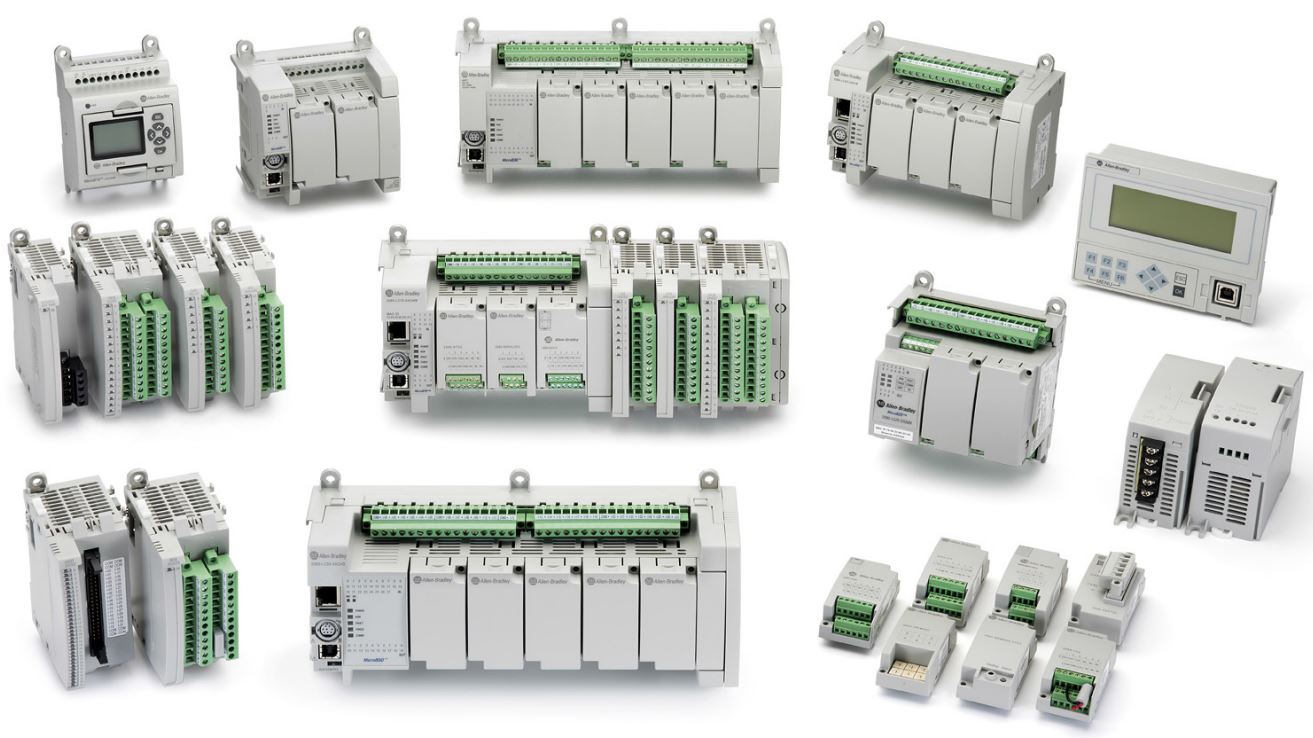

Micro800 Controllers & Expansion I/O Modules
​

• Micro810 (12-point relay outputs):
  • 2080-LC10-12AWA
  • 2080-LC10-12QWB
  • 2080-LC10-12DWD
  • 2080-LC10-12QBB
• Micro820 (20-point I/O):
  • 2080-LC20-20AWB
  • 2080-LC20-20AWBR
  • 2080-LC20-20QWB
  • 2080-LC20-20QWBR
  • 2080-LC20-20QBB
  • 2080-LC20-20QBBR
• Micro850 (24- and 48-point):
  • 2080-L50E-24AWB
  • 2080-L50E-24QWB
  • 2080-L50E-24QVB
  • 2080-L50E-24QBB
  • 2080-L50E-48AWB
  • 2080-L50E-48QWB
  • 2080-L50E-48QWBK
  • 2080-L50E-48QVB
  • 2080-L50E-48QBB
• Micro870 (24-point, higher performance):
  • 2080-L70E-24AWB
  • 2080-L70E-24QWB
  • 2080-L70E-24QWBK
  • 2080-L70E-24QWBN
  • 2080-L70E-24QWBNK
  • 2080-L70E-24QBB
  • 2080-L70E-24QBBK
  • 2080-L70E-24QBBN

Expansion I/O Modules (Bulletin 2085)
Used for extending I/O capabilities on Micro850 and Micro870:

• Digital I/O Modules: 2085-IQ16, 2085-IQ16K, 2085-IQ32T, 2085-OV16, 2085-OB16, 2085-OW8, 2085-OW16
• Analog I/O Modules: 2085-IF4, 2085-IF8, 2085-IF8K, 2085-OF4, etc.
• Other Modules: 2085-IA8, 2085-IM8 (AC inputs), 2085-ECR (bus terminator), 2085-EP24VDC (power supply)

Plug-In Modules for Embedded I/O (Bulletin 2080)
Designed to snap directly into Micro820, Micro850, and Micro870:

• Digital I/O plug-ins: 2080-IQ4, 2080-OB4, 2080-OV4, 2080-IQ4OB4, 2080-IQ4OV4, 2080-OW4I
• Analog I/O plug-ins: 2080-IF2, 2080-IF2K, 2080-IF4, 2080-OF2
• Specialty I/O: 2080-RTD2 (temperature), 2080-TC2 (temperature control), 2080-MOT-HSC (high-speed counter), 2080-TRIMPOT6
• Memory / Clock backup: 2080-MEMBAK-RTC, 2080-MEMBAK-RTC2
• Communication modules: 2080-DNET20 (DeviceNet scanner), 2080-SERIALISOL (isolated RS-232/485 serial)

Accessories
Additional modules to enhance controller functionality:

• Displays / Interface: 2080-LCD (LCD + keypad for Micro810), 2080-REMLCD (remote LCD for Micro820)
• Programming interface: 2080-USBADAPTER (USB adapter for Micro810)
• Storage: 2080-SD-2GB (microSD card for project backup, datalogging)
• Power Modules: 2080-PSAC-12W, 2080-PS120-240VAC



Part Number Summary

Controllers

• Micro810: 2080-LC10-12AWA, -12QWB, -12DWD, -12QBB
• Micro820: 2080-LC20-20AWB, -20AWBR, -20QWB, -20QWBR, -20QBB, -20QBBR
• Micro850: 2080-L50E series (24/48-point variants)
• Micro870: 2080-L70E series (24-point, multiple versions)

Expansion Modules (2085)

• Digital, analog I/O, AC input, bus terminator, power supply (2085-XX modules)

Embedded Plug-Ins (2080)

• I/O, specialty, comms, backup (e.g., 2080-IQ4, 2080-RTD2, 2080-DNET20)

Accessories

• Interface displays, USB adapters, microSD card, power supplies
