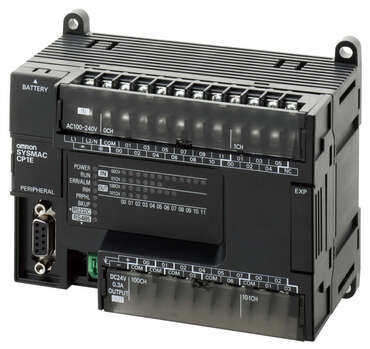

Omron CP Series
​PLC Modules & Parts

---

• Compact All-in-One PLCs — CP1E, CP1L, and CP1H models combine CPU, power supply, and I/O in a single unit for space-saving control.

• Built-in Functions — options include pulse outputs for motion, analog I/O, USB programming, and Ethernet models for flexible connectivity.

• Expandable & Cost-Effective — supports CP1W expansion units, communication boards, and accessories, ideal for small to mid-size automation.


---

CPU Units

Category
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units
CPU Units

Model
​CP1H-XA40DT-D
CP1H-X40DT-D
CP1H-Y20DT-D
CP1L-EM30DT-D
CP1L-EL20DT-D
CP1L-M30DT-D
CP1L-L20DT-D
CP1E-N30DT-D
CP1E-N20DR-D
CP1E-E30DT-D
CP1E-E20DR-D
CP2E-N30DT-D
CP2E-N20DR-D
CP2E-E30DT-D
CP2E-E20DR-D

Part Number
​CP1H-XA40DT-D
CP1H-X40DT-D
CP1H-Y20DT-D
CP1L-EM30DT-D
CP1L-EL20DT-D
CP1L-M30DT-D
CP1L-L20DT-D
CP1E-N30DT-D
CP1E-N20DR-D
CP1E-E30DT-D
CP1E-E20DR-D
CP2E-N30DT-D
CP2E-N20DR-D
CP2E-E30DT-D
CP2E-E20DR-D

Description
CPU Unit with Analog I/O
Standard CPU Unit
Positioning CPU Unit
CPU Unit with Ethernet
CPU Unit with Ethernet
CPU Unit without Ethernet
CPU Unit without Ethernet
Basic CPU Unit
Basic CPU Unit
Basic CPU Unit with Ethernet
Basic CPU Unit with Ethernet
Nano CPU Unit
Nano CPU Unit
Nano CPU Unit with Ethernet
Nano CPU Unit with Ethernet

Expansion I/O Units

Category
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units
Expansion I/O Units

Model
​​CP1W-8ED
CP1W-8ET
CP1W-8ER
CP1W-20EDR1
CP1W-20EDT1
CP1W-AD041
CP1W-DA021
CP1W-MAD11
CP1W-TS001
CP1W-TS002
CP1W-PTS01
CP1W-PTS02

Part Number
​​​CP1W-8ED
CP1W-8ET
CP1W-8ER
CP1W-20EDR1
CP1W-20EDT1
CP1W-AD041
CP1W-DA021
CP1W-MAD11
CP1W-TS001
CP1W-TS002
CP1W-PTS01
CP1W-PTS02

Description
​8-point DC Input Module
8-point Transistor Output Module (Sourcing)
8-point Relay Output Module
Mixed I/O Unit
Mixed I/O Unit
4-channel Analog Input Module
2-channel Analog Output Module
Analog I/O Module
2-point Thermocouple Input Module
4-point Thermocouple Input Module
2-point Platinum RTD Input Module
4-point Platinum RTD Input Module

Option Boards

Category
​Option Boards
Option Boards
Option Boards
Option Boards
Option Boards

Model
​​CP1W-CIF01
CP1W-CIF11
CP1W-CIF41
CP1W-MAD11
CP1W-TS101

Part Number
​CP1W-CIF01
CP1W-CIF11
CP1W-CIF41
CP1W-MAD11
CP1W-TS101

Description
RS-232C Option Board
RS-422A/485 Option Board
Ethernet Option Board
Analog I/O Option Board
Temperature Sensor Option Board

 Programming Cables & Converters

Category
​Cables & Converters
Cables & Converters
Cables & Converters

Model
​​CS1W-CIF31
XW2Z-200S
CP1W-CIF11

Part Number
​​​CS1W-CIF31
XW2Z-200S
CP1W-CIF11

Description
USB Programming Cable
RS-232C Programming Cable
USB to Serial Converter

Accessories

Category
Accessories
Accessories
Accessories
Accessories
Accessories
Accessories

Model
​​S8VS-06024
CP1W-EXT01
HMC-EF183
CP1W-BAT01
PFP-100N
CP1W-LBL01

Part Number
​​S8VS-06024
CP1W-EXT01
HMC-EF183
CP1W-BAT01
PFP-100N
CP1W-LBL01

Description
​DIN-Rail Power Supply
End Cover for Expansion I/O
Flash Memory Card
Backup Battery
35mm DIN Rail
I/O Label Sheet

Software

Category
​Software
Software

Model
​​CX-One
CX-Programmer

Part Number
​​CX-One
CX-Programmer

Description
​Omron Software Suite
Standalone PLC Programming Software
